kickstop_door_p2ks

BUY StapleGuard

The Kickstop StapleGuard was originally known as the London Frame Reinforcer



In simple terms, it is a short version of the London Bar.  The difference being that the two StapleGuard plates bolt together through the frame using four security bolts whereas the London Bar is screwed on.

It is very strong indeed and resists forced entry by strengthening the door frame around the staple (keep) of a cylinder nightlatch or rim lock.

  • The StapleGuard is available in three sizes, three polyester powder coated architectural finishes and one polished and brass plated finish.
  • The Kickstop StapleGuard offers superior protection and resistance against kick-in attacks and forced entry.
  • Supplied with security bolts and fitting instructions.



An enlarged drawing to illustrate the fitting of a StapleGuard - click here.





!

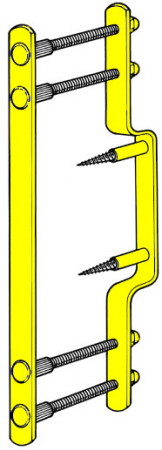

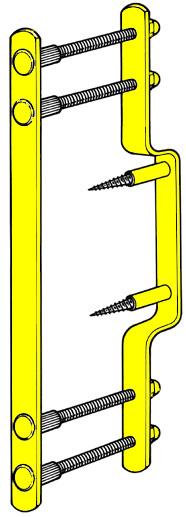

Kickstop StapleGuard Universal Staple - 2004 WH

  • Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less
  • White Colour
  • A four bolt steel StapleGuard for most sizes of staple
  • 20mm wide
  • Bolt through version of the London Bar
  • To Reinforce and Strengthen Wooden Door Frame

The fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large size staple



2004 plate dimensions - 300mm long x 20mm wide x 5mm thick - Rounded Edge - White

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

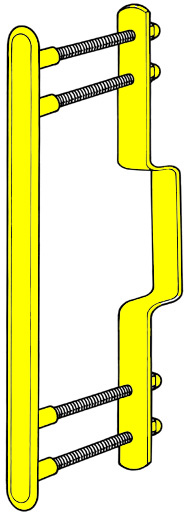

Kickstop StapleGuard Standard Staple - 9603

  • Standard size 'D' shape staple to fit over lock staple/keep which is 30mm x 70mm - or less
  • A four bolt StapleGuard for smaller sizes of staple
  • 20mm wide
  • Bolt through version of the London Bar
  • To Reinforce and Strengthen Wooden Door Frame



9603 plate dimensions

300mm long x 20mm wide x 7mm thick -

Bevelled Edge

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

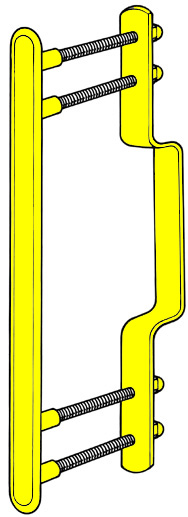

Kickstop StapleGuard - Large Staple - 9604

  • Large size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less
  • A four bolt StapleGuard for larger sizes of lock staple
  • 20mm wide
  • Bolt through version of the London Bar
  • To Reinforce and Strengthen Wooden Door Frame



9604 plate dimensions

300mm long x 20mm wide x 7mm thick -

Bevelled Edge

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information





Kickstop StapleGuard Ingersoll SC71 - 9605

  • A four bolt StapleGuard to fit over the Ingersoll SC71 rim lock.  The 9605 staple has a cut out to allow the Springbolt of the lock to pass through - not illustrated **
  • 20mm wide
  • It is not 'handed' and can be fitted on the left or right side of the door frame.
  • Bolt through version of the 9612/9613 London Bar
  • To Reinforce and Strengthen Wooden Door Frame

9604 plate dimensions

300mm long x 20mm wide x 7mm thick -

Bevelled Edge

** Modified version of the Standard Staple to fit over lock staple/keep which is 30mm x 70mm - or less



NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information
