Anti-Thrust Devices



Anti-thrust plate is Locksmith terminology for a flat plate that is fitted to the external face of a door, overlapping the edge and covering the gap between the door and frame to prevent someone using an implement to tamper with the latch or bolt.



  • All Kickstop Anti-Thrust Plates are made from 3mm thick steel.
  • Because the plate overlaps the edge of the door, it would be fitted to a pair of doors or a single door that opens outward.
  • For the same reason, if it is fitted to double doors that open inward, it cannot be fitted to the door that opens first.
  • Kickstop supplies high security Anti-Thrust Plates and very high security Anti-ThrustGuards and a complete list and description is provided below.





Before ordering

*Very carefully check the type of keyway you require

Traditional UK (UK) - Euro profile cylinder (EU) - Oval cylinder (OV)



NB: Choose the device/plate with the correct shape of keyway





Anti-Thrust Devices to provide anti-jemmy protection for mortice deadlocks and latches

AT1UK , 2021UK, AT1EU, 2021EU, AT1OV, 2021OV







UK

(for traditional lever/detainer mortice deadlock)



EU

(for Euro Profile cylinder mortice deadlock)

OV

(for Oval Profile cylinder mortice deadlock)

Mortice deadlocks shown above - for illustration purposes only



Euro Cylinder

 Oval Cylinder





Mortice deadlock cylinders shown above  - for illustration purposes only







AT1UK

203 x 100 x 3mm

Reversible - NOT Handed

(Countersunk Both Sides)

 AT1EU

203 x 100 x 3mm

Reversible - NOT Handed

(Countersunk Both Sides)

AT1OV

203 x 100 x 3mm

Reversible - NOT Handed

(Countersunk Both Sides)

2021UK

203 x 100/50 x 3mm

Reversible - NOT Handed

(Finished Both Sides)

2021EU

203 x 100/50 x 3mm

Reversible - NOT Handed

(Finished Both Sides)

2021OV

203 x 100/50 x 3mm

Reversible - NOT Handed

(Finished Both Sides)



Anti-Thrust Devices to provide anti-jemmy protection for mortice sashlocks

AT5, 2025

With 'Universal' elongated hole for use with UK Keyway, Euro and Oval profile cylinder

For use with existing lever lock furnitiure



AT5

240 x 100 x 3mm

The top elongated hole is for the spindle

The lower 'universal' hole is for the UK keyway, Euro cylinder or Oval cylinder

Reversible - NOT Handed

(Countersunk Both Sides)

2025

240 x 100/75 x 3mm

The top elongated hole is for the spindle

The lower 'universal' hole is for the UK keyway, Euro cylinder or Oval cylinder

Reversible - NOT Handed

(Finished Both Sides)



Anti-Thrust Device to provide anti-jemmy protection for cylinder rimlocks

AT6



AT6

203 x 120 x 3mm

Hole for cylinder is 47.5mm in diameter

Reversible - NOT Handed



Anti-Thrust devices to provide anti jemmy protection for single or double doors - with no keyway

AT1, AT2, AT4



AT1

203 x 100 x 3mm

Reversible - NOT Handed

AT2

480 x 80 x 3mm - 5 screws

Reversible - NOT Handed

AT4

1980 x 80 x 3mm - 19 screws

Reversible - NOT Handed



BUY Anti-Thrust Plate - Screw on plate (Sentinel security screws supplied)



BUY Anti-ThrustGuard - Bolt through plates (security fixings supplied)



Tel: 01536 790999

Online B2B shop powered by Security Matters

Kickstop Anti-Thrust Plate - Traditional UK Keyway

Kickstop
Product Code: AT1UK
Add to cart
  • Description
  • Code: AT1UK
  • For Outward Opening Door or Double Doors
  • Steel Plate with UK KEYWAY
  • Reversible - Not Handed
  • 100mm wide
  • For Mortice Deadlock or Latch
  • To Overlap and cover gap between Door and Frame
  • Included - Sentinel Countersunk Security Screws



AT1UK dimensions - 203mm long x 100mm wide x 3mm thick -

Four Countersunk Holes

This is the screw on version of the 2021 UK

Not Handed - Reversible Plate (countersunk both sides)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop Anti-Thrust Plate - Euro Profile Keyway

Kickstop
Product Code: AT1EU
Add to cart
  • Description
  • Code: AT1EU
  • For Outward Opening Door or Double Doors
  • Steel Plate with EURO KEYWAY
  • Reversible - Not Handed
  • 100mm wide
  • For Mortice Deadlock or Latch
  • To Overlap and cover gap between Door and Frame
  • Included - Sentinel Countersunk Security Screws



AT1EU dimensions - 203mm long x 100mm wide x 3mm thick -

Four Countersunk Holes

This is the screw on version of the 2021 EU

Not Handed - Reversible Plate (countersunk both sides)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information



Kickstop Anti-Thrust Plate - Euro Profile Keyway

Kickstop
Product Code: AT3EU
Add to cart
  • Description
  • Code AT3EU
  • For Outward Opening Door or Double Doors
  • Steel Plate with EURO KEYWAY
  • Reversible - Not Handed
  • 100mm wide
  • For Mortice Deadlock or Latch
  • To Overlap and cover gap between Door and Frame
  • Included - Sentinel Countersunk Security Screws



AT1EU dimensions - 280mm long x 100mm wide x 3mm thick -

Four Countersunk Holes

Not Handed - Reversible Plate (countersunk both sides)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information



Kickstop Anti-Thrust Plate - Oval Profile Keyway

Kickstop
Product Code: AT1OV
Add to cart
  • Description
  • Code AT1OV
  • For Outward Opening Door or Double Doors
  • Steel Plate with OVAL KEYWAY
  • Reversible - Not Handed
  • 100mm wide
  • For Mortice Deadlock or Latch
  • To Overlap and cover gap between Door and Frame
  • Included - Sentinel Countersunk Security Screws



AT1OV dimensions - 203mm long x 100mm wide x 3mm thick -

Four Countersunk Holes

Not Handed - Reversible Plate (countersunk both sides)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information



Kickstop Anti-Thrust Plate - No Keyway

Kickstop
Product Code: AT1
Add to cart
  • Description
  • Code: AT1
  • For Outward Opening Door or Double Doors
  • Steel Plate with NO KEYWAY
  • Reversible - Not Handed
  • 100mm wide
  • For Mortice Deadlock or Latch
  • To Overlap and cover gap between Door and Frame
  • Included - Sentinel Countersunk Security Screws



AT1 dimensions - 203mm long x 100mm wide x 3mm thick -

Four Countersunk Holes

Not Handed - Reversible Plate (countersunk both sides)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop Anti-Thrust Plate - No Keyway

Kickstop
Product Code: AT2
Add to cart
  • Description
  • Code: AT2
  • For Outward Opening Door or Double Doors
  • Large Steel Plate with NO KEYWAY
  • Reversible - Not Handed
  • 80mm wide'1/4' Door Height
  • To Overlap and cover gap between Door and Frame
  • Included - Sentinel Countersunk Security Screws



AT2 dimensions - 480mm long x 80mm wide x 3mm thick -

Five Countersunk Holes - Not Handed

This is the much shorter version of the AT4

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop Anti-Thrust Plate - AT4

Kickstop
Product Code: AT4
Add to cart
  • Description
  • Code: AT4
  • For Outward Opening Door or Double Doors
  • Very Large Steel Plate with NO KEYWAY
  • Reversible - Not Handed
  • 80mm wide
  • Full Door Height
  • To Overlap and cover gap between Door and Frame
  • Supplied with Sentinel countersunk security screws



AT4 dimensions - 1980mm long x 80mm wide x 3mm thick -

19 Countersunk Holes -  Not Handed

This is the much longer version of the AT2

(Illustration is of AT2 @ 480mm - the AT4 is far too long to illustrate on this page @ 1980mm)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

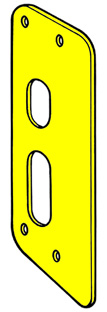

Kickstop Anti-Thrust Plate - AT5

Kickstop
Product Code: AT5
Add to cart
  • Description
  • Code: AT5
  • For Outward Opening Door or Double Doors
  • Steel Plate with UNIVERSAL KEYWAY
  • Reversible - Not Handed
  • 100mm wide
  • For Mortice Sashlock - use with own lever lock furniture
  • To Overlap and cover gap between Door and Frame
  • For Outward Opening Doors
  • Supplied with Sentinel countersunk security screws



AT5 dimensions - 240mm long x 100mm wide x 3mm thick -

Four Countersunk Holes

This is the screw on version of the 2025

Not Handed - Reversible Plate (countersunk both sides)

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information



Kickstop Anti-Thrust Plate - AT6

Kickstop
Product Code: AT6
Add to cart
  • Description
  • Code: AT6
  • For Outward Opening Door or Double Doors
  • Steel Plate for up to 47.5mm Diameter cylinder
  • Reversible - Not Handed
  • 120mm wide
  • For Cylinder Rim Lock
  • To Overlap and cover gap between Door and Frame
  • Included - Sentinel Countersunk Security Screws



AT6 dimensions - 203mm long x 120mm wide x 3mm thick -

Four Countersunk Holes - Not Handed

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop Anti-ThrustGuard - Traditional UK Keyway

Kickstop
Product Code: 2021UK
Add to cart
  • Description
  • Code: 2021UK
  • High Security
  • For Outward Opening Door or Double Doors
  • Two Steel Plates with UK KEYWAY
  • 100mm & 50mm wide
  • For UK Lever Mortice Deadlock or Latch
  • To Overlap and cover gap between Door and Frame



2021UK dimensions - 203mm long x 100/50mm wide x 3mm thick -

two security bolts

This is the bolt through higher security version of the AT1 UK

Not Handed - Reversible External Plate

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop Anti-ThrustGuard - Euro Profile Keyway

Kickstop
Product Code: 2021EU
Add to cart
  • Description
  • Code: 2021EU
  • High Security
  • For Outward Opening Door or Double Doors
  • Two Steel Plates with EURO KEYWAY
  • 100mm & 50mm wide
  • For Euro Profile Cylinder Mortice Deadlock or Latch
  • To Overlap and cover gap between Door and Frame



2021EU plate dimensions - 203mm long x 100/50mm wide x 3mm thick -

two security bolts

This is the bolt through higher security version of the AT1 EU

Not Handed - Reversible External Plate

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

Kickstop Anti-ThrustGuard - Oval Profile Keyway

Kickstop
Product Code: 2021OV
Add to cart
  • Description
  • Code: 2021OV
  • High Security
  • For Outward Opening Door or Double Doors
  • Two Steel Plates with OVAL KEYWAY
  • 100mm & 50mm wide
  • For Oval Profile Cylinder Mortice Deadlock or Latch
  • To Overlap and cover gap between Door and Frame



2021OV plate dimensions - 203mm long x 100/50mm wide x 3mm thick -

two security bolts

This is the bolt through higher security version of the AT1 OV

Not Handed - Reversible External Plate

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

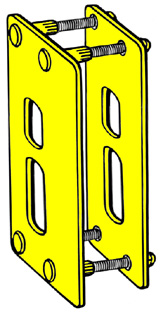

Kickstop Anti-ThrustGuard - Universal Keyway

Kickstop
Product Code: 2025
Add to cart
  • Description
  • Code: 2025
  • High Security
  • For Outward Opening Door or Double Doors
  • Two Steel Plates with UNIVERSAL KEYWAY
  • 100mm & 75mm wide
  • For Mortice Sashlock
  • To Overlap and cover gap between Door and Frame



2025 plate dimensions - 240mm long x 100/75mm wide x 3mm thick -

four security bolts

This is the bolt through higher security version of the AT5

Not Handed - Reversible Plates

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information
