StapleGuard for Door Frame

stapleguard





The StapleGuard is bolted together through the frame - around the rim lock staple (keep)



  • The StapleGuard (originally known as - London Frame Reinforcer):
  • This bolt through version of the London Bar has two plates.
  • The external plate is flat with a bevelled edge designed to resist side impact.
  • The internal plate has a 'D' shaped staple to fit over the rim lock staple.
  • Supplied with 4" long bolt fixings.






Before ordering

Very carefully check that the Stapleguard staple size that you order, is the correct size that you need to fit over the door's nightlatch or rim lock staple.

If in doubt, please obtain advice from us by telephone on 01536 790999









2004 Universal Staple

(30mm x 97mm)

This is a large size staple that can be slightly 'reduced' by using the two fixings



9603 Standard Staple

(30mm x 70mm)

To fit over the staple of a Yale 77 and other similar sized nightlatches



9604 Large Staple

(30mm x 97mm)

To fit over the staple of the Yale No. 1 and other similar sized rim locks





9605 Ingersoll Staple

  • This is a 'non-handed' stapleguard with a 30mm x 70mm Standard staple - to fit over the left or right handed Ingersoll SC71
  • It will fit over the lock staple and has a small cut out section to allow the Springbolt of the lock to pass through.



BUY Stapleguard



Tel: 01536 790999

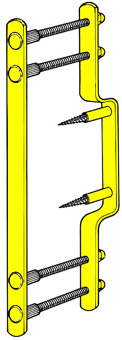

Kickstop StapleGuard - Universal Staple

Kickstop
Product Code: 2004 WH
Add to cart
  • Description
  • Code: 2004 WH
  • Universal size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less
  • White Colour
  • A four bolt steel StapleGuard for most sizes of staple
  • 20mm wide
  • Bolt through version of the London Bar
  • To Reinforce and Strengthen Wooden Door Frame

The fixings allow the internal size of the staple to be 'reduced' from 97 to 70mm.  Perfect for customers who are unsure whether to purchase a Standard or Large size staple



2004 plate dimensions - 300mm long x 20mm wide x 5mm thick - Rounded Edge - White

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information

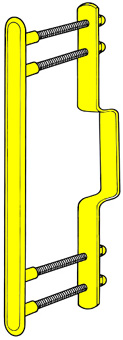

Kickstop StapleGuard - Standard Staple

Kickstop
Product Code: 9603
Add to cart
  • Description
  • Code: 9603
  • Standard size 'D' shape staple to fit over lock staple/keep which is 30mm x 70mm - or less
  • A four bolt StapleGuard for smaller sizes of staple
  • 20mm wide
  • Bolt through version of the London Bar
  • To Reinforce and Strengthen Wooden Door Frame



9603 plate dimensions

300mm long x 20mm wide x 7mm thick -

Bevelled Edge

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information



Kickstop StapleGuard - Large Staple

Kickstop
Product Code: 9604
Add to cart
  • Description
  • Code: 9604
  • Large size 'D' shape staple to fit over lock staple/keep which is 30mm x 97mm - or less
  • A four bolt StapleGuard for larger sizes of staple
  • 20mm wide
  • Bolt through version of the London Bar
  • To Reinforce and Strengthen Wooden Door Frame



9604 plate dimensions

300mm long x 20mm wide x 7mm thick -

Bevelled Edge

NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information





Kickstop StapleGuard - Ingersoll SC71 Staple

Kickstop
Product Code: 9605
Add to cart
  • Description
  • Code: 9605
  • A four bolt StapleGuard to fit over the Ingersoll SC71 rim lock.  The 9605 staple has a cut out to allow the Springbolt of the lock to pass through - not illustrated **
  • 20mm wide
  • It is not 'handed' and can be fitted on the left or right side of the door frame.
  • Bolt through version of the 9612/9613 London Bar
  • To Reinforce and Strengthen Wooden Door Frame

9604 plate dimensions

300mm long x 20mm wide x 7mm thick -

Bevelled Edge

** Modified version of the Standard Staple to fit over lock staple/keep which is 30mm x 70mm - or less



NB: If you are unsure about the suitability of this product - we suggest you look at More Information

More Information
